Motor: Kohler DI2504TCR CAC Stage V
Generator: Leroy Somer modell LSA42.2S5

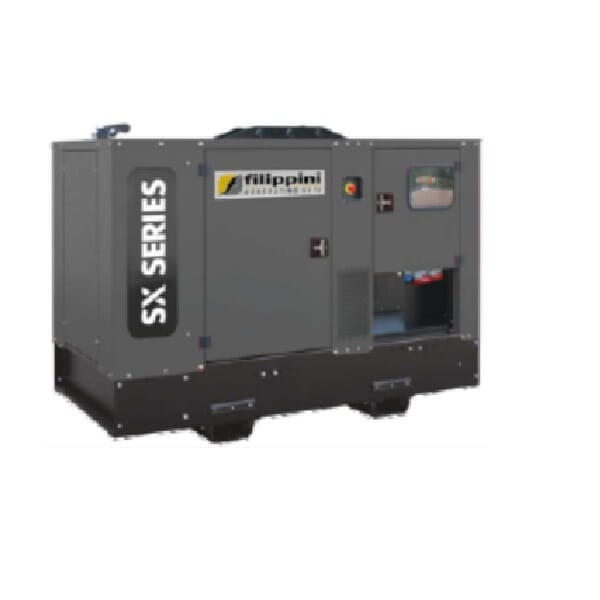

Generating set equipped with:
Soundproofed canopy Enermax series (65-68 dB(A)
Bunded fuel tank with optical level indicator
Leakage sensor
Fuel divertor valve for external tank supply
Start battery 12Vdc with disconnecting switch
Oil extraction pump
Engine preheater 500W
Internal lighting system
Manual auto start control panel fitted on board of genset:
DSE7310 controller
4P circuit breaker 100A
Microswitch alarm for door opening
3 socket kit [1x63A 400V – 1x32A 400V – 1x16A 230V)
16A plug external supply for preheater
Emergency stop button
Terminal strip
2-position voltage selector switch: T400V and T230V mounted inside the panel
